EDB01

Reflective Beam Smoke Detector

General Description

The EDB01 Reflective Beam Smoke Detector is a single unit comprising a transmitter and a receiver. The transmitter projects a cone shaped beam of modulated infra-red light to prisms. An alarm condition will be determined when the signal is analyzed to reach up to the settings of retention of smoke (4 sensitivity levels).

In addition, the unit is designed to be wall-mounted so that the beam will project approximately 0.3m to 0.6m below and parallel to the ceiling and the maximum lateral range is 7.5m either side of the beam. The coverage ranges of distance are from 10m to 100m.

Characteristics

  • EN54-12 Approval.
  • Easy installation.
  • Laser-aid alignment.
  • Operating range: 10m to 100m.
  • Four sensitivity levels 18%, 25%, 35%, and 50%.
  • Latching / Non-Latching threshold setting.
  • Lower potential voltage & current consumption.
  • Self-alignment & Automatic contamination compensation.
  • Bluetooth App operation on smartphone & tablet, display smoke value, temperature and 3 mode status (Supervising, Alarm, Fault ).

Approval

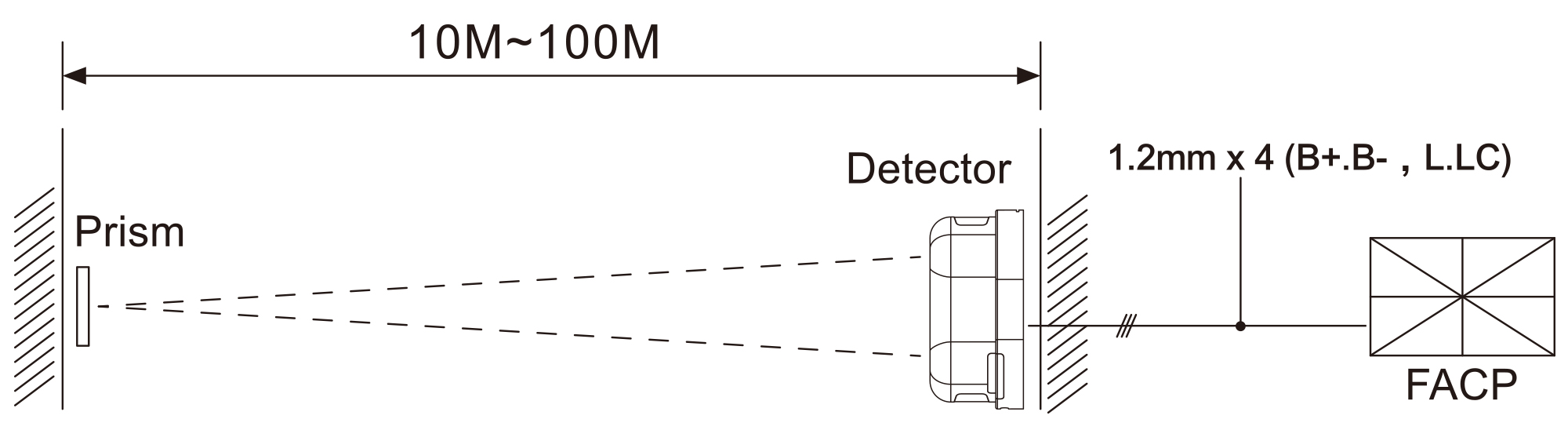

Operating Range

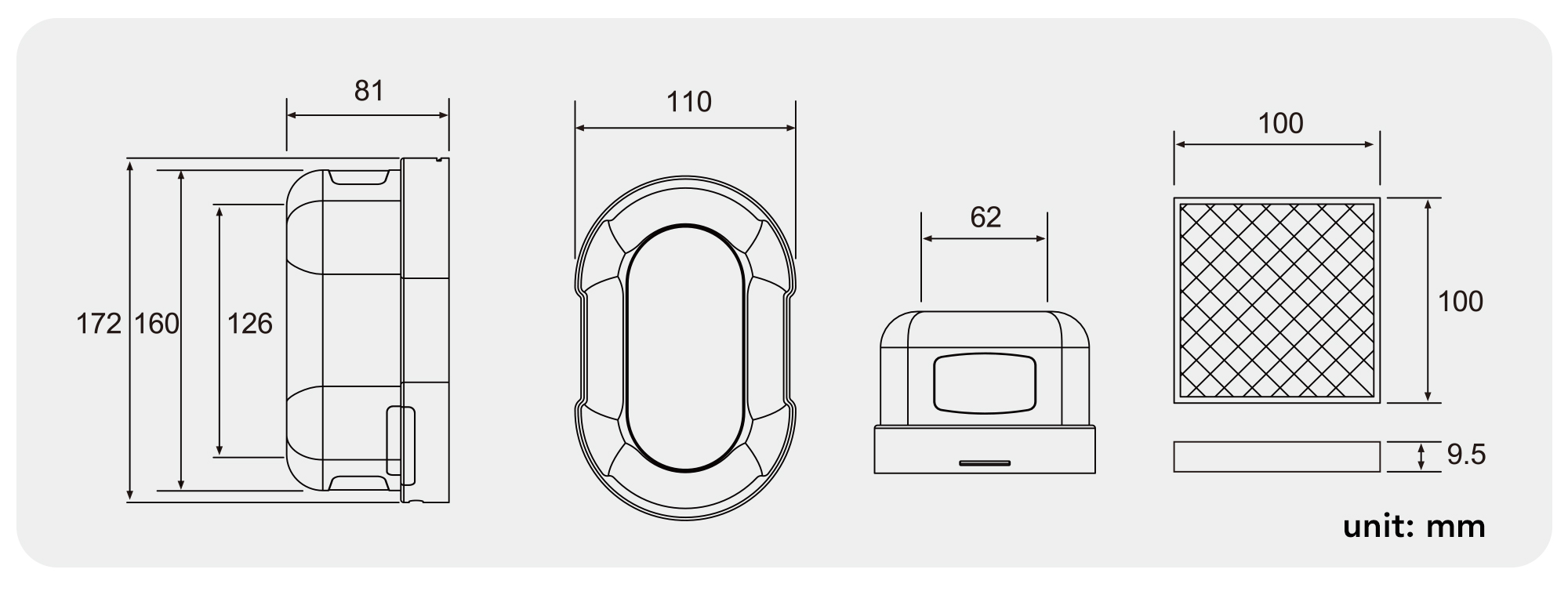

Dimensions

Specification

EDB01 Reflective Beam Smoke Detector

Model EDB01
Operating Voltage 12-30V DC
Standby Current 3~20mA
Alarm Current 20~40mA
Alarm Output 1A @30V DC (COM/NO)
Fault Output  1A @30V DC (COM/NC)
Sensitivity Level 18% (0.75-0.96dB) 10 ~ 20M
Sensitivity Level 25% (1dB) 20 ~ 50M
Sensitivity Level 35% (1.07dB) 50 ~ 70M
Sensitivity Level 50% (1.24-1.59dB) 70 ~ 100M
Operating Range 10m to 50m use 1 prism, 50m to 100m use 4 prisms
Angular Tolerance Detector: ±0.5˚ / Prism: ±5.0˚
Ambient Temperature -10℃ ~ +55℃
Material  ABS Plastic
Color White
Weight 350g (Detector)
